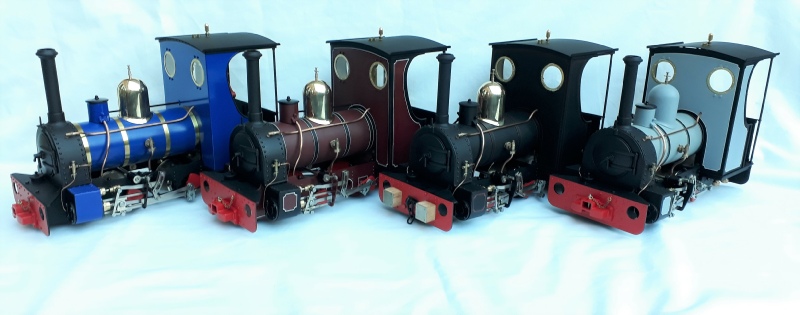

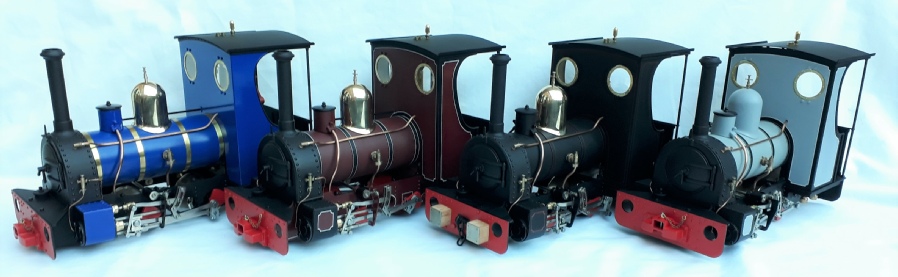

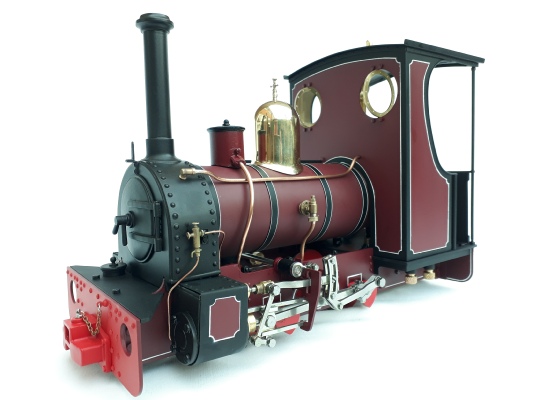

7/8ths Hunslet Jack

Chassis

• Outside framed 0-4-0 chassis
• Dual gauge (32mm & 45mm Gauge)
• Features Roundhouse slide valve cylinders
• Combination and drop link detail.
• Simplified Walschaerts valve gear
• Manual control via regulator & Fwd/Rev lever

Boiler

• Gas fired (internal flue type boiler)
• Boiler top up valve fitted as standard
• 40psi Working boiler pressure

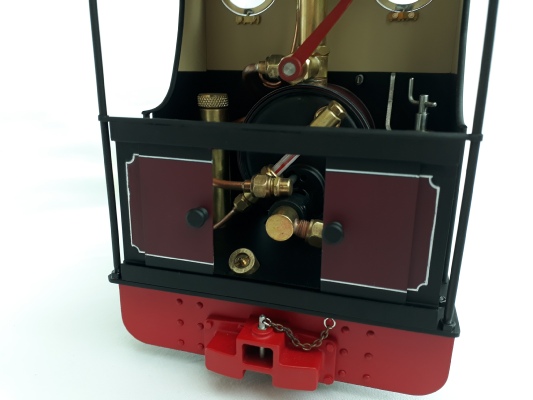

• Displacement lubricator with drain valve
• 3/4” Dia pressure gauge fitted as standard
• Water gauge fitted as standard with blowdown valve

Body

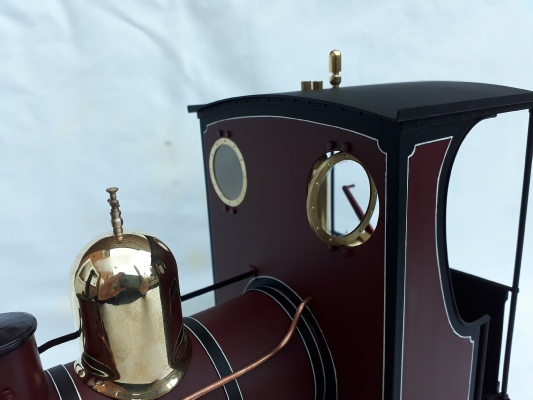

• Front spectacle plate with revolving windows
• Etched brass body
• Finished in Maroon (option of lining out)

Dimensions (approx)

• Length 250mm (over buffer beams)

    275 (overall length)

• Width 112mm
• Height 175mm (from rail to of cab)

Loco Options

• Boiler Bands - Brass / loco colour

Options at additional cost to loco price

• Optional Summerlands Chuffer
• Change pressure gauge from 3/4” dia to 1/2” dia
• Optional lining out as per prototype
